Product Details
＋
DESCRIPTION
Transceivers like these both send and receive data in 'packets' of several bytes at a time. There are built-in error correction and resending, and it is possible to have one unit communicate with up to 6 other similar units at the same time.
Power Supply: 1.9 : 3.3 v
2DB Antenna
Low noise amplifier (LNA) for noise supression
Power Amplifier (PA)
1Km Range with line of sight at 250kbps
Ultra low power consumption – months to years of battery lifetime
250kbps to 2Mbit Data Rate
Auto Acknowledge & Auto Re-Transmit
Multiceiver - 6 Data Pipes
Software selectable channel from 2400MHz to 2525MHz (125 Selectable channels)

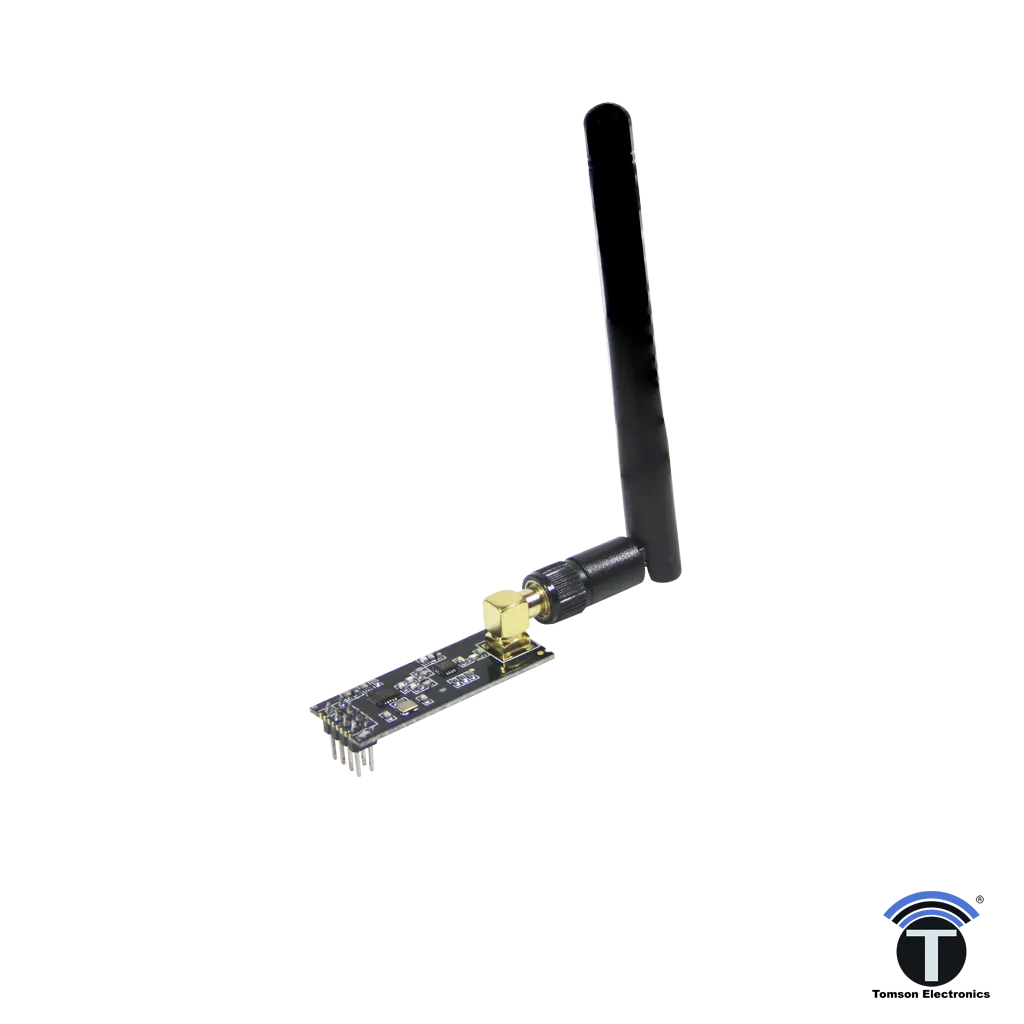

The latest version of 2.4 GHz wireless transceiver based on Nordic nRF 24L01. This module is equipped with power amplifier (PA) and low noise amplifier (LNA) together with 2DB antenna. This increase the transmission distance to reach 1000 meter at 250kbps data rate with line of sight but at the same tie noise is decreased due to LNA.
The NRF24L01 integrates a complete 2.4GHz RF transceiver, RF synthesizer, and Enhanced ShockBurst™ hardware protocol accelerator supporting a high-speed SPI interface for the application controller.
Transceivers like these both send and receive data in 'packets' of several bytes at a time. There are built-in error correction and resending, and it is possible to have one unit communicate with up to 6 other similar units at the same time.
FEATURES
