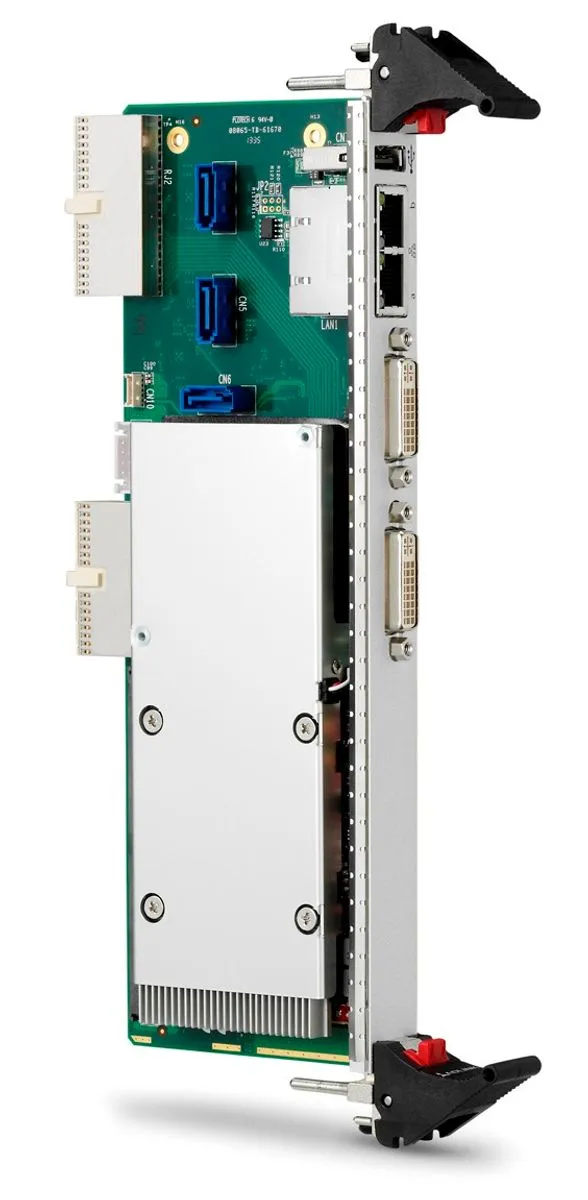

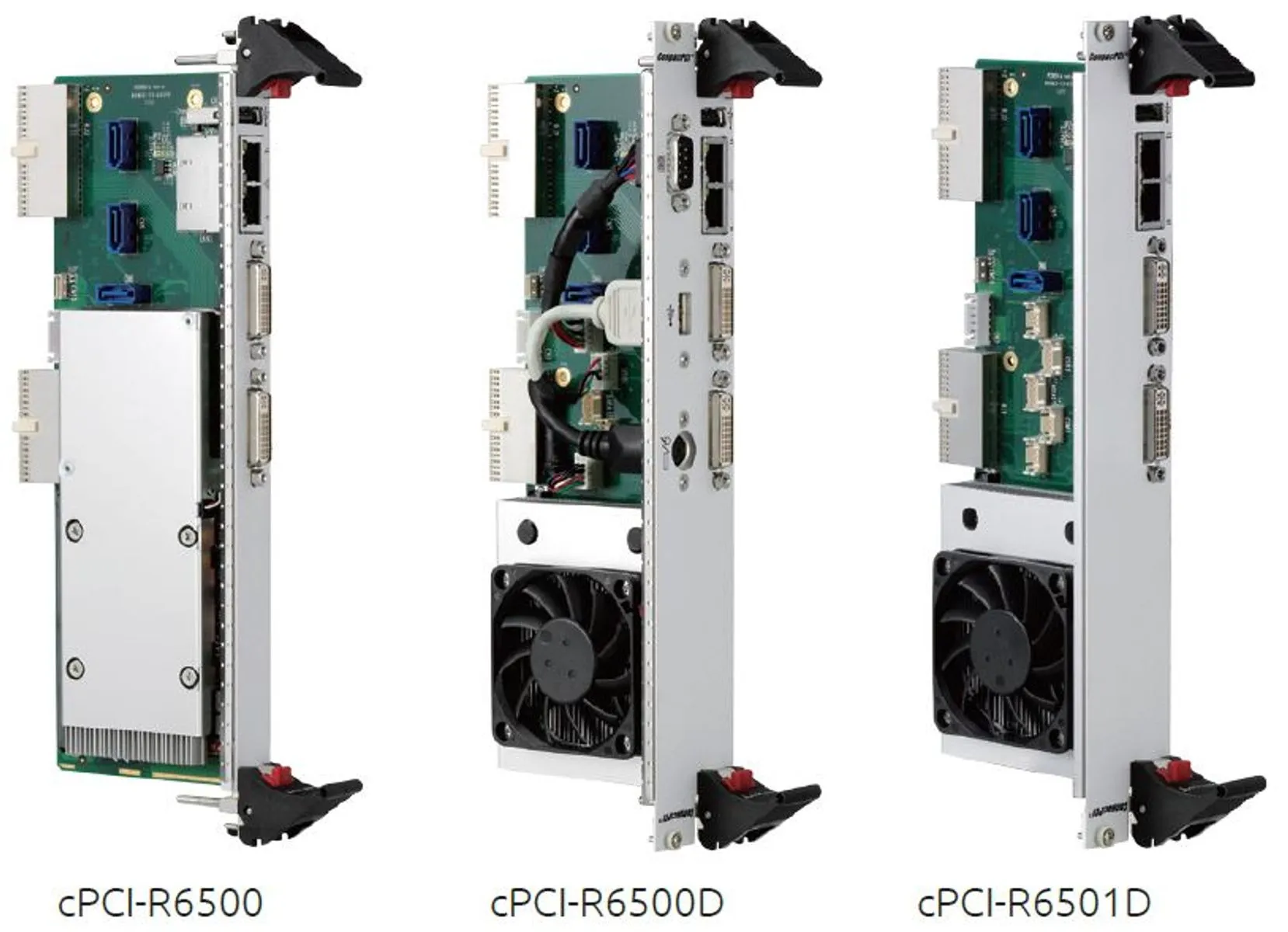

The cPCI-R6500 Series is 6U CompactPCI rear transition module (RTM) designed for use with ADLINK 6U CompactPCI CPU blades. The cPCI-R6500 is an RTM equipped with an ATI graphics module to provide additional graphics performance for embedded applications and supports comprehensive rear I/O functionality. Dual independent display output is via two DVI ports and an onboard Realtek ALC262 High Definition Audio Codec provides analog audio output from the audio controller on the CPU blade. The cPCI-R6500 requires a compatible 6U CompactPCI backplane with rear I/O support and correctly configured CPU blade.
