Product Details
＋
If you are facing any problems in buying or building your drone then you can consult with our drone expert they will guide you on your problem like which parts to choose, and what will be the best drone/parts in your budget.
Why you should consult with our drone experts
i. For any Doubt
ii. For any Advice & others
Overall, consulting with drone experts can help you make informed decisions, mitigate risks, and optimize the performance of your drone for your specific needs and objectives.
Book your slot now:
Package includes:

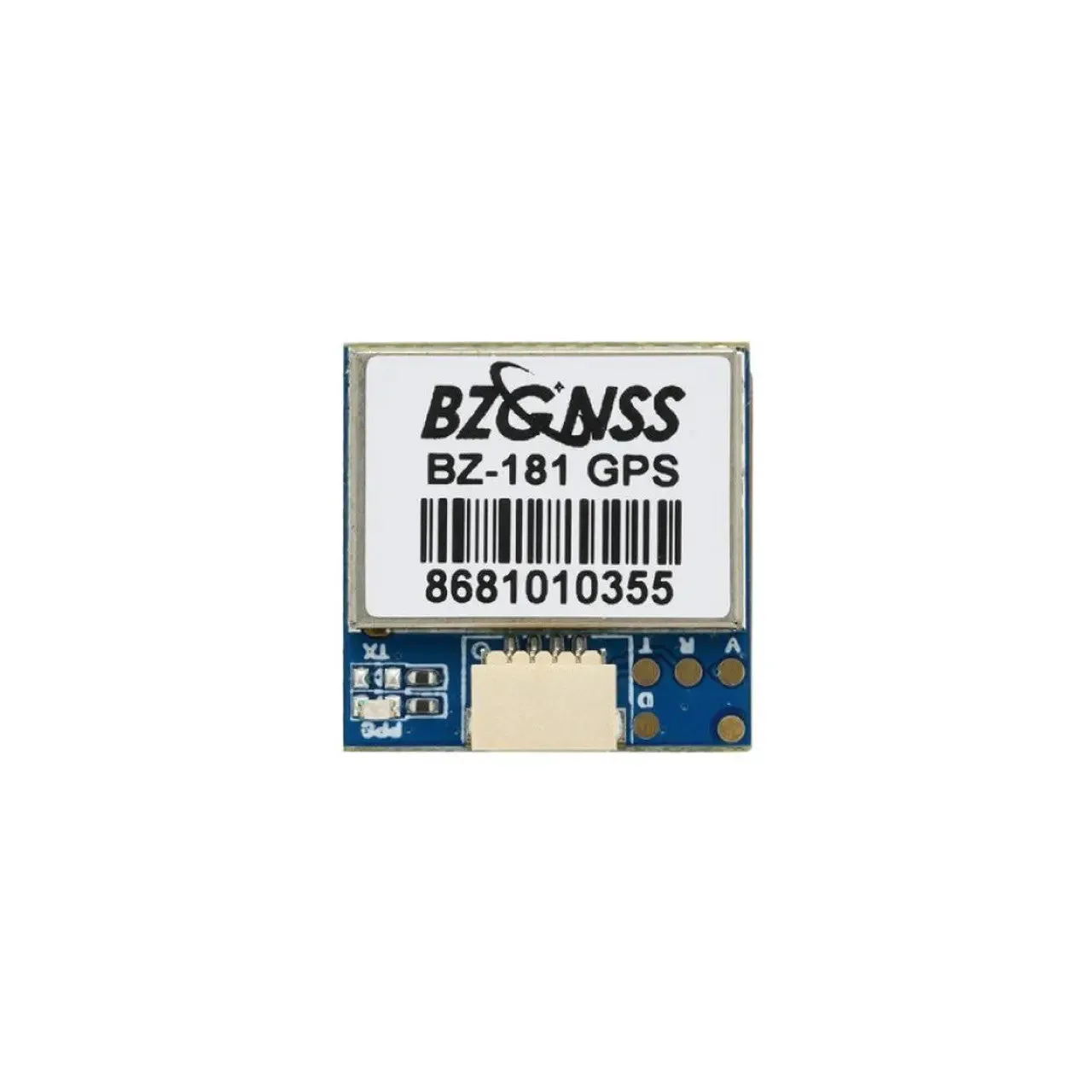

1× BZGNSS BZ-181 GPS MODULE
| Specification | Details |
| Brand | BZGNSS |
| Model | BZ-181 |
| Type | GPS Module |
| Receiver Type | GPS, GLONASS, Galileo, QZSS, SBAS |
| Frequency | L1 band (1575.42 MHz) |
| Channels | 72-channel |
| Positioning Accuracy | Horizontal: <2.5m CEP |
| Velocity Accuracy | <0.1 m/s |
| Timing Accuracy | ±30 ns |
| Acquisition Time | Cold Start: <30 s |
| Warm Start: <5 s | |
| Hot Start: <1 s | |
| Sensitivity | Tracking: -167 dBm |
| Cold Start: -148 dBm | |
| Hot Start: -156 dBm | |
| Update Rate | Up to 10 Hz |
| Power Supply Voltage | 3.3V to 5V |
| Power Consumption | <30 mA (continuous tracking mode) |
| Interfaces | UART, I2C, SPI |
| Baud Rate | Configurable, default 9600 bps |
| Antenna | Integrated ceramic patch antenna, 25x25mm |
| Dimensions | 25mm x 25mm x 8mm |
| Weight | 10g |
| Operating Temperature | -40°C to 85°C |
| Storage Temperature | -40°C to 85°C |
| Humidity | 5% to 95% non-condensing |
| Mounting Type | Surface mount (SMT) |
| LED Indicator | Power and status LEDs |
| Certifications | CE, FCC, RoHS |
| Firmware Upgrades | Supported via UART interface |
| Additional Features | |
| - Built-in LNA and SAW filter | |
| - Multi-path mitigation | |
| - Support for A-GPS | |
| - Support for DGPS and RTK modes |
