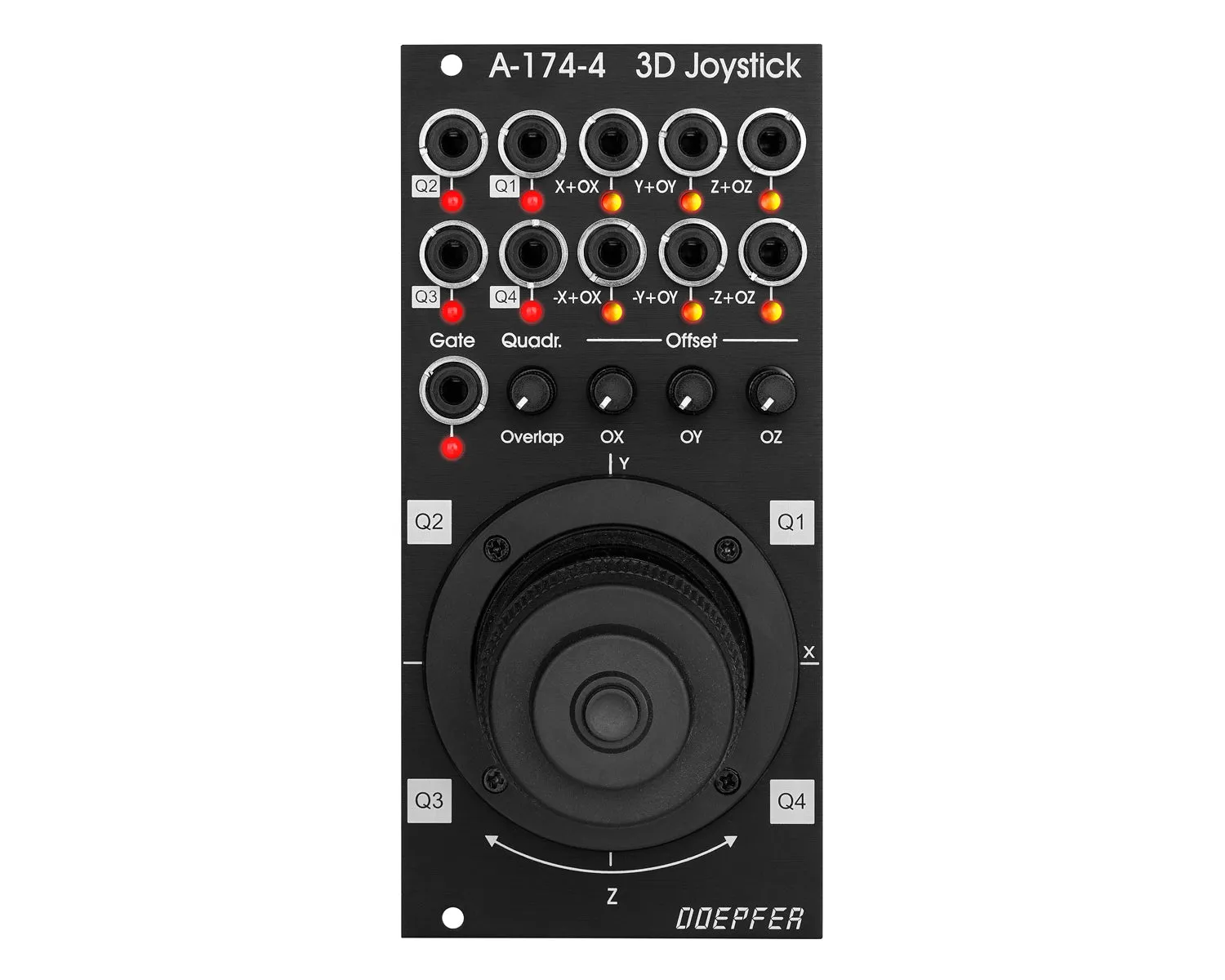

The Doepfer A-174-4 is an innovative 3D Joystick featuring three axis. It allows you to control three control voltages at once (X, Y, Z).
The joystick offers the classic X and Y axis, as well as a third axis (Z); the rotation of the joystick. The button on top activates a gate.

The module outputs normal and inverted CV, including offset adjustment for each inverted output. It also features four quadrant outputs (Q1, Q2, Q3, Q4) with adjustable overlap.

The 3D joystick allows physical control of any Eurorack module with CV inputs.

Video:

Product Specs

• Item Number: 16630
• Make:
• Model:
• Condition:
• Finish: Black
• Categories: ⇒
• Function:
• Made In: Germany
• MPN: A-174-4V
• EAN: 420711117450
• Modular Grid: Eurorack
• Dimensions*: 12 HP 50 mm deep
• Power*: 50 mA 12V 20 mA -12V ? mA 5V

* User contributed details
