EDIMAX 5 Port 10/100 Fast Ethernet with 4x PoE ports and DIP Switch. PoE delivery up to 200m. Power Budget: 71.5W. Auto Energy Saving Functions. Plug and Play. VLAN and Loop Protection.

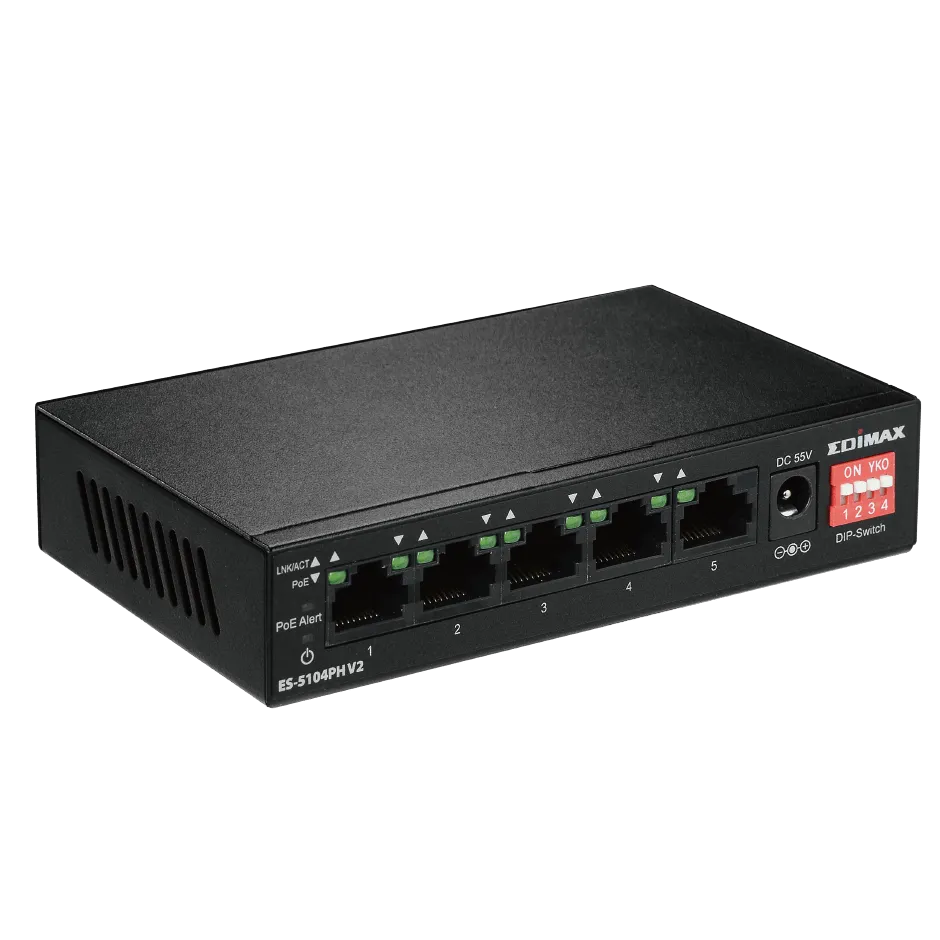

The Edimax ES-5104PH V2 is a five port Fast Ethernet switch with four PoE Ports designed for use in home, small or medium-sized network environments. With four DIP switches, PoE ports can be manually set with on/off control, extending PoE delivery distance up to 200m and port-based on/off control for VLAN and QoS is also supported. The switch easily connects and supplies power to PoE-enabled devices such as wireless access points, network cameras and IP phones as well as other Ethernet-enabled devices such as computers, printers or network attached storage (NAS). The compact size and fan-less design make the switch an ideal solution for expanding home and small business networks.



FEATURES:

• Five 10/100Mbps Fast Ethernet ports and four PoE ports
• IEEE 802.3af/at PoE compliant (ports 1-4) for simplified deployment and installation
• Up to 30W per PoE port (total power budget: 71.5W) for powering PoE-enabled devices
• Auto-detection of powered devices (PD) and power consumption levels
• 60W PoE budget
• Hardware DIP switch for “Standard” and “Extend” mode selection; the “Extend” mode features 30W PoE transmit distance of 200m at speed of 10Mbps
• Port-based VLAN and Loop Protection features
• Supports 802.1p Quality of Service (QoS)
• Plug & play, no installation required
• Fanless quiet operation
• External power adapter included



Power over Ethernet (PoE ) Auto Detection
Features four IEEE 802.3at Power over Ethernet (PoE ) ports which supply up to 30W of electricity per port. It can convert standard 100V-240V AC power into low-voltage 50V-57V DC electricity to power IEEE 802.3at compliant network accessories via existing LAN cables. With PoE detection capability, the ES-5104PH V2 is able to verify whether the connected device is IEEE 802.3at compliant. In the event that a PoE device is not detected, only network data will be transmitted through the LAN cable – meaning easy setup and management of network devices such as access points and network cameras.



Hardware QoS for Video & Voice Traffic Priority
Supports 802.1p QoS via DIP switch port 4. This ensures first priority for video and voice traffic.

APPLICATION DIAGRAM
