Description

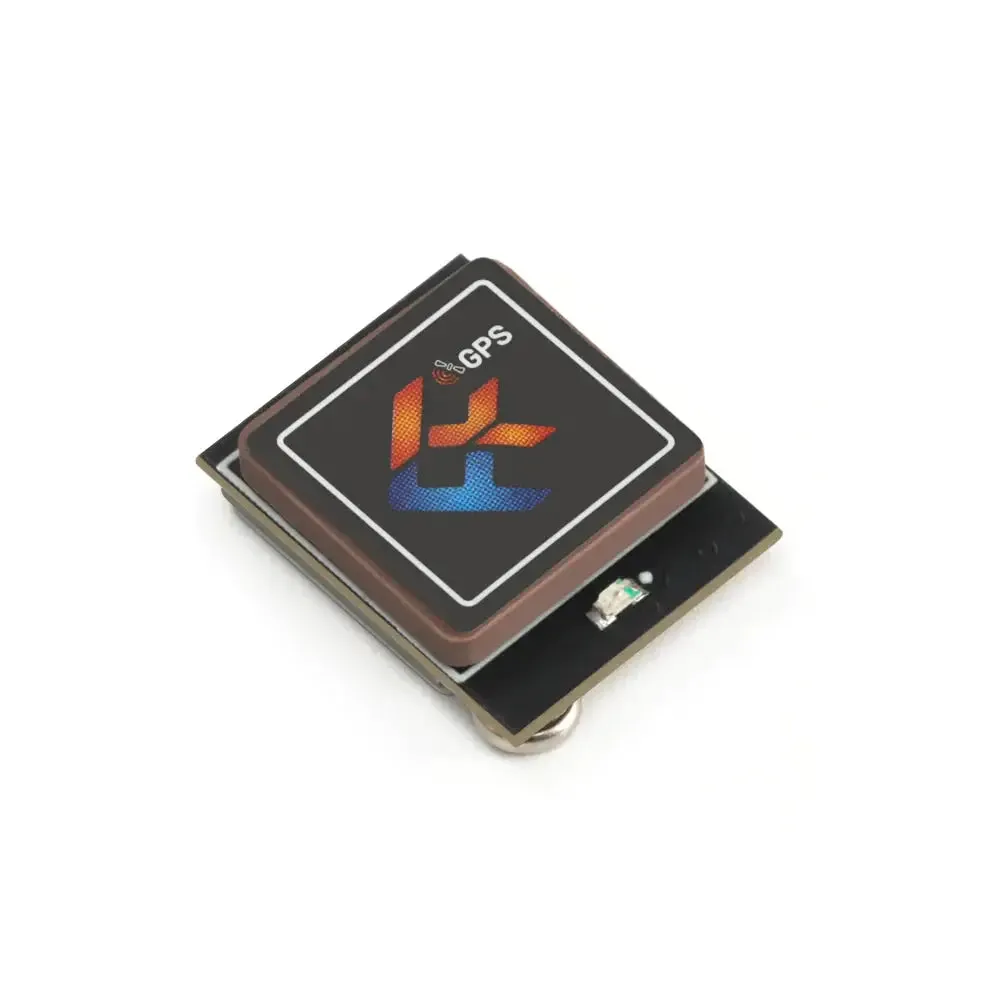

FlyfishRC-M10 Mini is a GPS that is small in size, fast in speed, and easy to use. It features an 12*12mm RHCP ceramic patch antenna that provides excellent reception and highly stable connectivity. The UBLOX 10th generation chip allows for skipping minor changes in altitude, improving stability.
Pin Definition:
VCC: System main power supply, voltage is 5V, current is about 40mA during operation
GND: Ground
RXD: Data input
TXD: Data output
Package Includes:
1× FlyFishRC M10 Mini GPS Module
1× Battery strap GPS Mount
4× 30 Silicone Cable
| SPECIFICATION:- | |
| Product Name | FlyFishRC M10 Mini GPS Module |
| GPS Module Protocol | Ublox/NMEA |
| Speed Accuracy | 0.05m/s |
| Cold Start | 30 s |
| Hot Start | 1-3 s |
| Tracking Sensitivity | -167dBm |
| Input Voltage | 3.3~5.5V (typical value 5V) |
| Maximum Altitude | 50000m |
| Maximum Speed | 500m/s |
| Maximum Acceleration | ≤4G |
| Baud Rate | 4800-115200bps (recommended 115200bps) |
| GPS Module Size | L16.2x W12.3x H4.9mm |
| GPS Ceramic Size | 12*12mm |
| Weight | 2.4g (±0.5g) |
