NOTE:- We might take 4 to 8 days to ship this product.

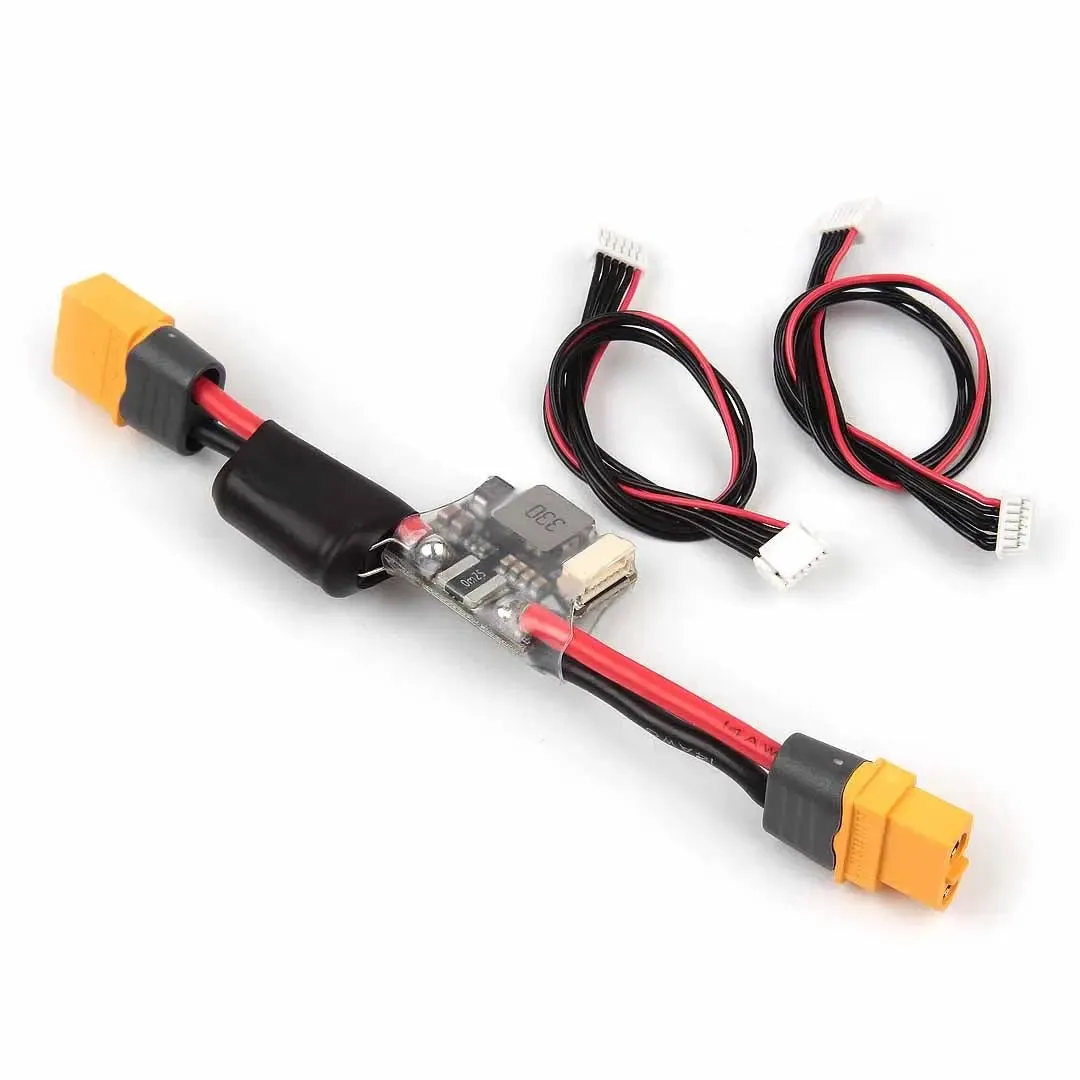

PM02 is a simple way of providing your APM and Pix32 with clean power from a LiPo battery as well as current consumption and battery voltage measurements, all through a 6-pos cable. The onboard switching regulator outputs 5.2V and a maximum of 3A from up to a 12S LiPo battery. The Power Module comes completely assembled with XT60 connectors, and wrapped in shrink tubing for protection.
The Power Module is designed to power APM, Pix32, an RC receiver, and APM accessories (GPS, radio). It is not designed to power servos. Use your aircraft’s own ESC/BEC for that.
The GH terminal is also compatible with Pix32, Pixhawk4, Pixhawk4 mini and Durandal.

Note: This PM02 Power Module uses analog data output and is not compatible with the Pixhawk 5X (Requires a digital PM like PM02D).

Note: Actual product may vary in terms of version.

Features:

Lightweight
Best for your DIY projects
Easy to Use

Package Include:

1× Holybro Power Module PM02

Specification:-
