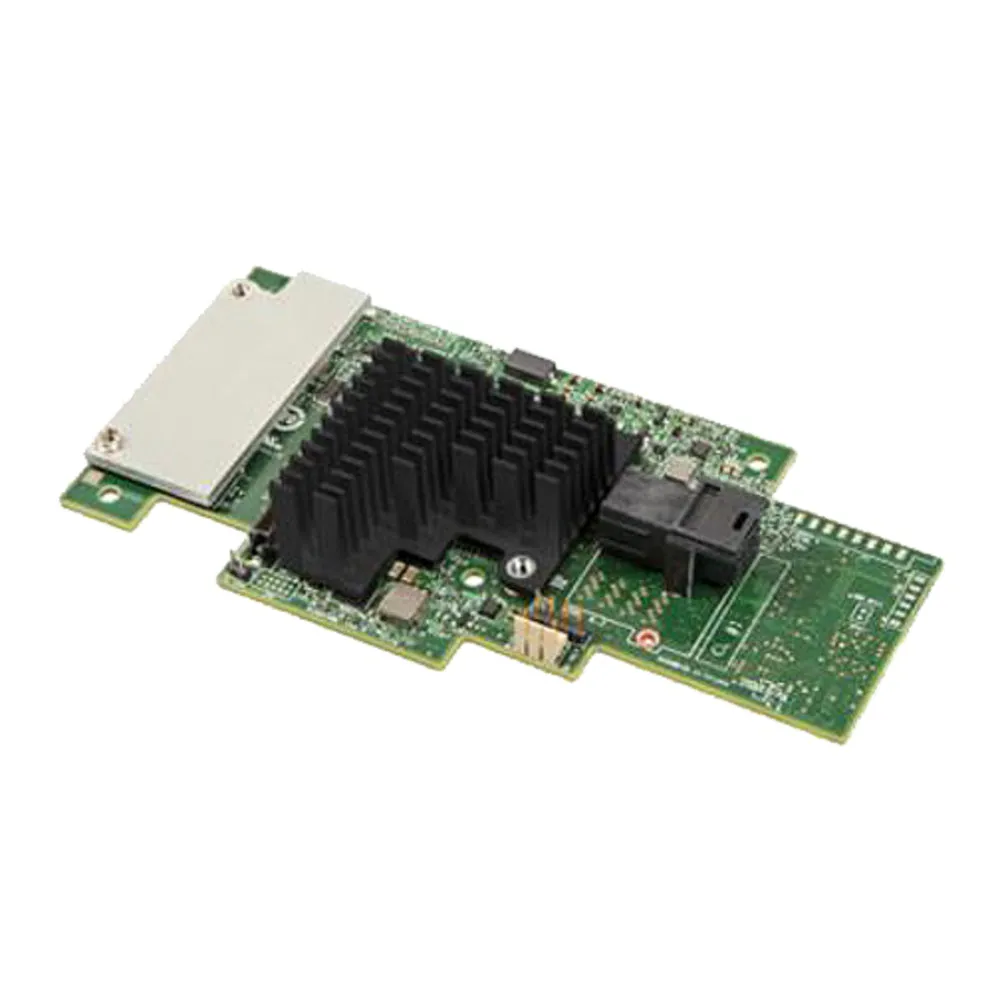

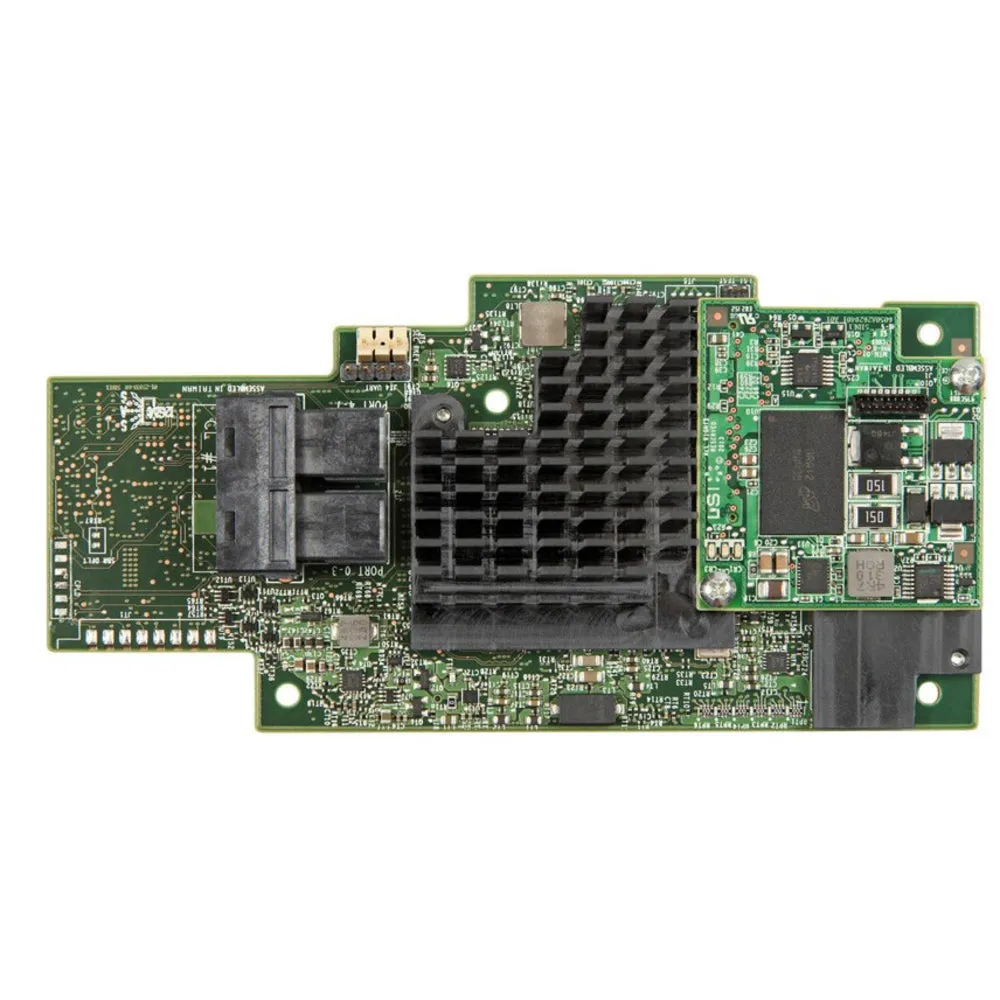

Intel RMS3CC040 SAS 4Port Integrated RAID Module Controller Card - Brown Box

Product Description:

The Intel RMS3CC040 SAS 4Port Integrated RAID Module Controller Card is a high-performance mezzanine card designed for efficient data storage and management. With its dual-core RAID-On-Chip (ROC) and support for various RAID levels, this controller card offers reliable and flexible storage solutions for your server systems.

Product Features:

• RAID levels: 0, 1, 10, 5, 50, 6, 60
• Number of devices supported: 128
• Sustained data transfer rate (native): 12288
• Connector orientation: Side
• Supported storage drive interfaces: SAS, Serial ATA
• Host interface: PCI Express x8
• PCI Card form factor: Full-height (low-profile)
• Internal SAS ports: 4
• Internal memory: 1024
• Internal memory type: DDR3
• Memory clock speed: 1866
• Built-in processor: SAS3108
• Processor family: LSI
• Data transfer rate: 12
• Compatible products: Intel Server System R1208WT2GS, Intel Server System R1208WTTGS, Intel Server System R1304WT2GS, Intel Server System R1304WTTGS, Intel Server System R2208WT2YS, Intel Server System R2208WTTYC1, Intel Server System R2208WTTYS, Intel Server System R2224WTTYS
• Windows operating systems supported:
• Linux operating systems supported:
• Operating temperature (T-T): 0 - 65
• PCI Express slots version: 3.0
• Compatible operating systems: Windows, Linux, Solaris, VMware
• Form factor: Storage Connector Module
• Compatible battery backup options: AXXRMFBU5
• Internal ports: 4
• Other features: Support for Premium Feature Options
• Supported devices: SAS/SATA
• Born on date: Q3'14
• Launch date: Q3'14
• Market segment: SRV
• PCI Express host interface: PCIe x8 Gen3
• Processor model: LSI3108
• Product name: Intel Integrated RAID Module RMS3CC040
• Product type: RAID
• RAID connector orientation: Side
• RAID keying: SIOM Connector
• Status: Launched
• RAID ARK ID: 82030
• Packaging content: (1) Intel Integrated RAID Module RMS3CC040, (4) standoffs, and (4) standoff locking pins
• Last change: 63903513
• Expected discontinuance date: Q2'23
• Extended warranty available for purchase (select countries): Yes
• Target market: Mainstream
• Last order date: 2019-08-03 05:00:37
• Additional features: Support for optional Maintenance Free Backup Unit and Premium Feature upgrade keys.
• Harmonized System (HS) code: 8471801000
