Best Solution and Place to Install Fast Speed 2x M.2 NGFF SATA SSD as standard 2.5 inch 7mm SATA III Drive with H/W RAID Big Drive, 2Drive, RAID 0, RAID 1 Features!

FEATURES

• 6Gbps SATA III H/W RAID Controller
• Convert 2x M.2 NGFF SATA based SSD to standard 2.5” 7mm SATA drive
• Supports SATA I, SATA II, SATA III Host port
• Supports SATA hot plug and booting
• Supports 6Gbps, 3Gbps SATA based M.2 NGFF 80/60/42/30 mm SSD

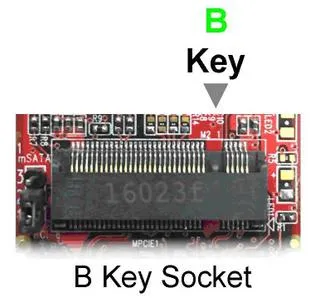

M.2 NGFF type 2280-D5-B B Key Socket on board

• Movable M.2 NGFF stand-off and multiple plated-holes supports type 2280, 2260, 2242 and 2230 SSD
• Supports dual-sided SSD module 1.5mm component height on the top and bottom side
• Supports H/W RAID 0, RAID1, SPAN (Big Drive) and PM (2Drives) Modes
• Not support PM (2Drives) Mode if SATA I or no Port Multiplier compatible SATA Host connection
• • 22 pin SATA (Signals and Power) male connector on board
  • 2x M.2 SSD ACT LED
  • Transparent to the operating system, no driver required on Windows, Mac and Linux
  • Hardware Jumper and Windows & Mac software GUI configure RAID modes
  • Provides Windows and Mac GUI to configure RAID modes and monitor RAID status
  • Includes 7mm height 2.5 “ drive metal frame with 8 mounting holes and 4 HDD screws
  • Compatible with 2.5” SATA drive dimension : 100.45mm x 69.85mm x 7mm
  • Fully RoHS compliant
  • M.2 SATA to 2.5 inch

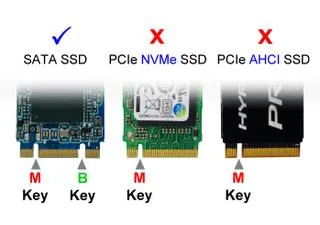

  *** PCIe NVMe & AHCI M.2 M Key SSD can NOT work with this M.2 B Key socket
