Product Details
＋
- Works with
- Cutout design, easy to install the 6374/6384 motors without removing the motor mount.
- Support 15T:76T Max

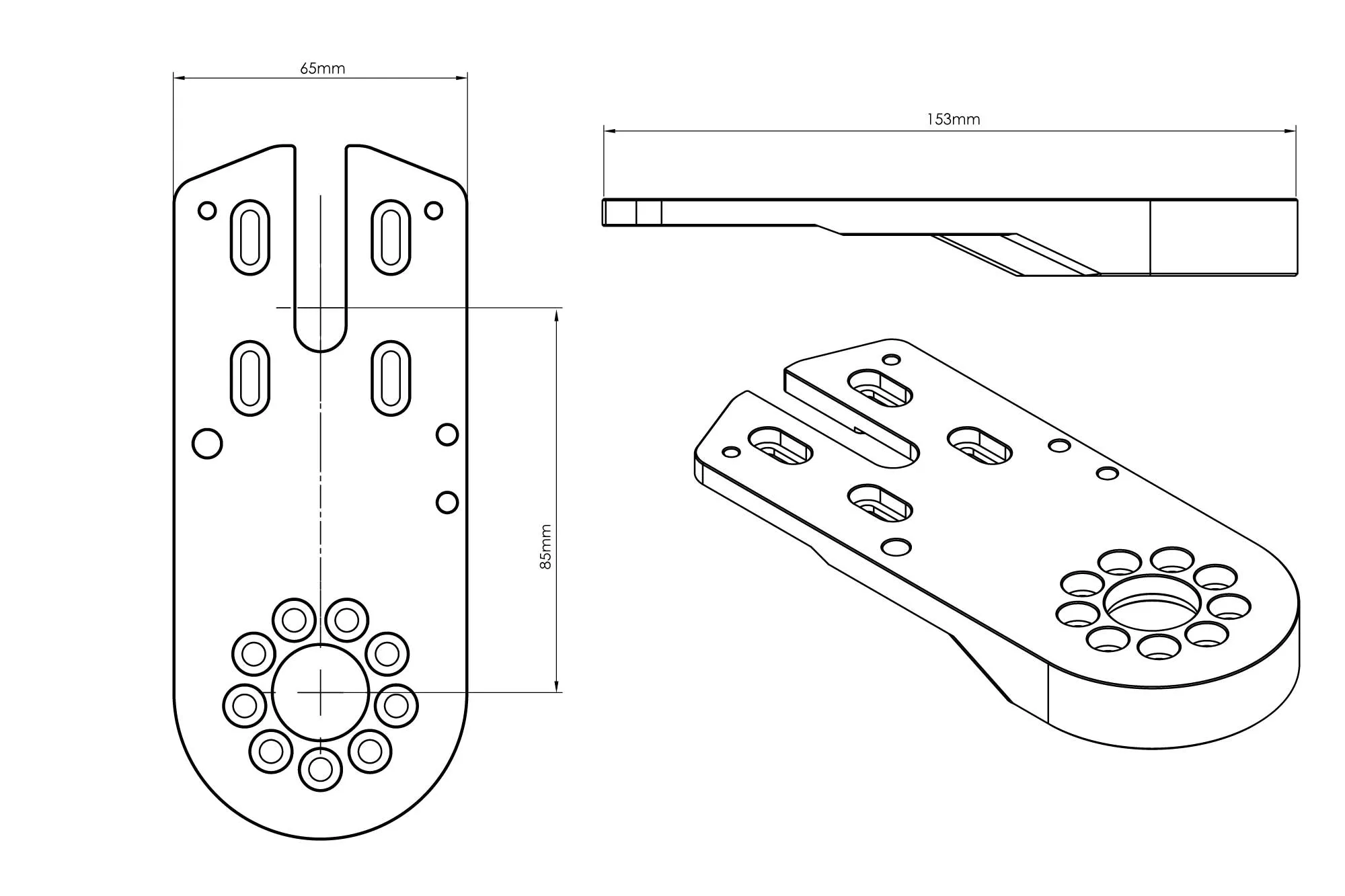

- C2C distance: 85mm
- Electric Skateboard Motor Mounts for Flash
- Supports 63mm series motors.
For belt size, please check the table below:
| Wheel Set | Pulley | Belt Size | Bearing | Bearing for pulley |
|---|---|---|---|---|
| 105mm Airless Wheel | 40T | 5M310 | 608(22*8*7) | 6900(22*10*6) |
| 120mm Cloud Wheel | 40T | 5M310 | 608(22*8*7) | 6900(22*10*6) |
| 150mm Airless Wheels AT | 60T | 5M370 | 608(22*8*7) | 6900(22*10*6) |
| 150(Sakura Hub) | 60T | 5M370 | 608(22*8*7) | 6900(22*10*6) |
| 155(Sakura Hub) | 60T | 5M370 | (26*8*8) | (26*10*8) |
SOURCE: BOUNDMOTOR
