Product Details
＋

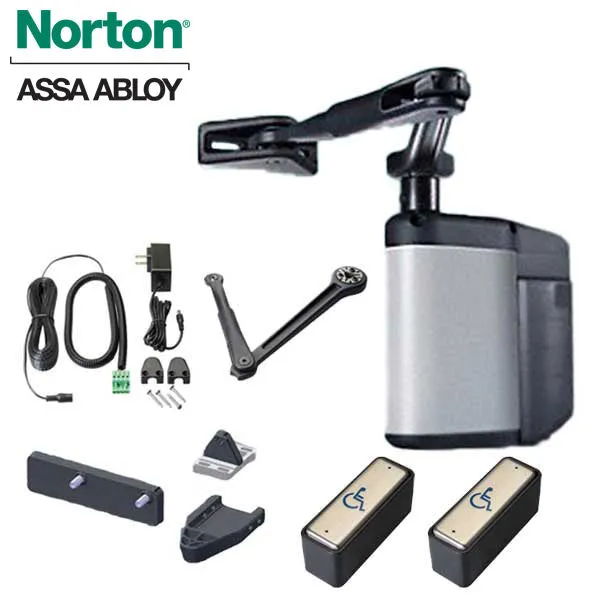

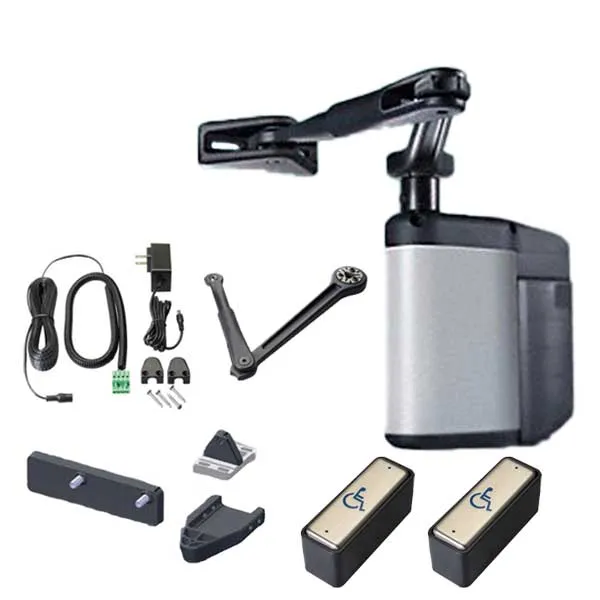

The 5800 Series ADAEZ PRO COMPLETE is an extreme duty, low energy door opener designed for moderate to high traffic manual opening applications that occasionally requires powered operation. A regenerative drive system charges an onboard battery pack eliminating the need for electrical power. Verified by GreenCircle to offer energy savings. This kit includes: The 5800 series door operator, two (2) narrow style pushbuttons with wireless RF transmitters, 1015P hardwire kit 24VDC transformer, and push & pull mounting hardware.
In order to connect a 5800 series to an Access Control system you will need the 5800 Series ADAEZ Operator Wireless Interface Module (WIM) -
Features:
- Regenerative drive or continuous duty operation
- Non-handed
- 95° max. door opening
- Transformer allows for operator to be plugged in. decreasing efficiency but increasing longevity.
- Push & Pull side mounting with Double Lever, Parallel, and Regular Arm included
- Radio Frequency stainless steel push buttons
- Integral RF receiver
- Shock absorbing arm
- Built-in ON/OFF Switch
- Auxiliary activation input port
- Patented Auto-Tune feature ensures safety and compliance with A156.19 code
- Protection from high-wind & abusive environments
- Built-in battery backup allows use during power failure
- Brushless DC motor/gearbox tested 10 million cycles
- Power Close ensures consistent door latching
Specifications:
| Construction: | Heavy-Duty cast-aluminum body |
| Function: | Hydraulic Electronic Door Operator |
| Interior or Exterior: | Universal |
| Handing: | Non-Handed |
| Power Input: | 120 VAC, 60Hz |
| Power Supply: | 24 VDC (1.1A) |
| Finish: | 689 - Aluminum |
| Maximum Door Weight: | 250lbs |
| Door Width: | 30 - 48" |
| Spring Size: | Adjustable 2 - 5 |
| Housing Depth: | 3-1/2" |
| Housing Height: | 8" |
| Housing length: | 8-1/2" |
| Projection from Wall: | 3-1/2" |
| Mounting Style: | Parallel, Regular, Top Jamb |
| Max. Door Opening: | 180 Degrees |
| ADA: | Meets requirements for Americans with Disabilities Act (ADA) |
| Fire Rating: | UL10c 90-minute positive pressure fire rating |
| Certifications: | ANSI/BHMA A156.19 certified. ETL tested to UL / cUL standard for automatic doors on fire & smoke barrier doors. |
| Warranty: | 2-Year Limited Warranty |
