Description:

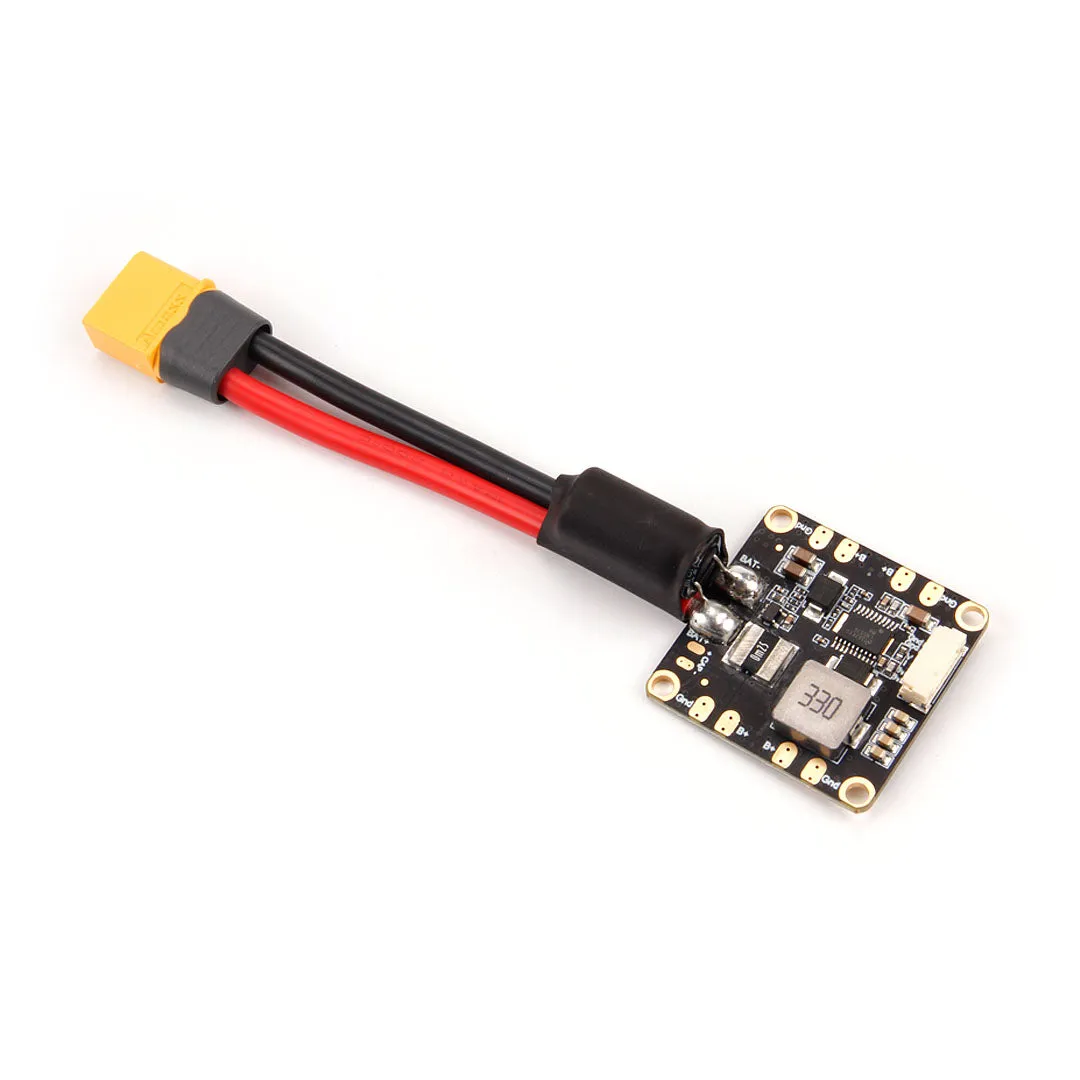

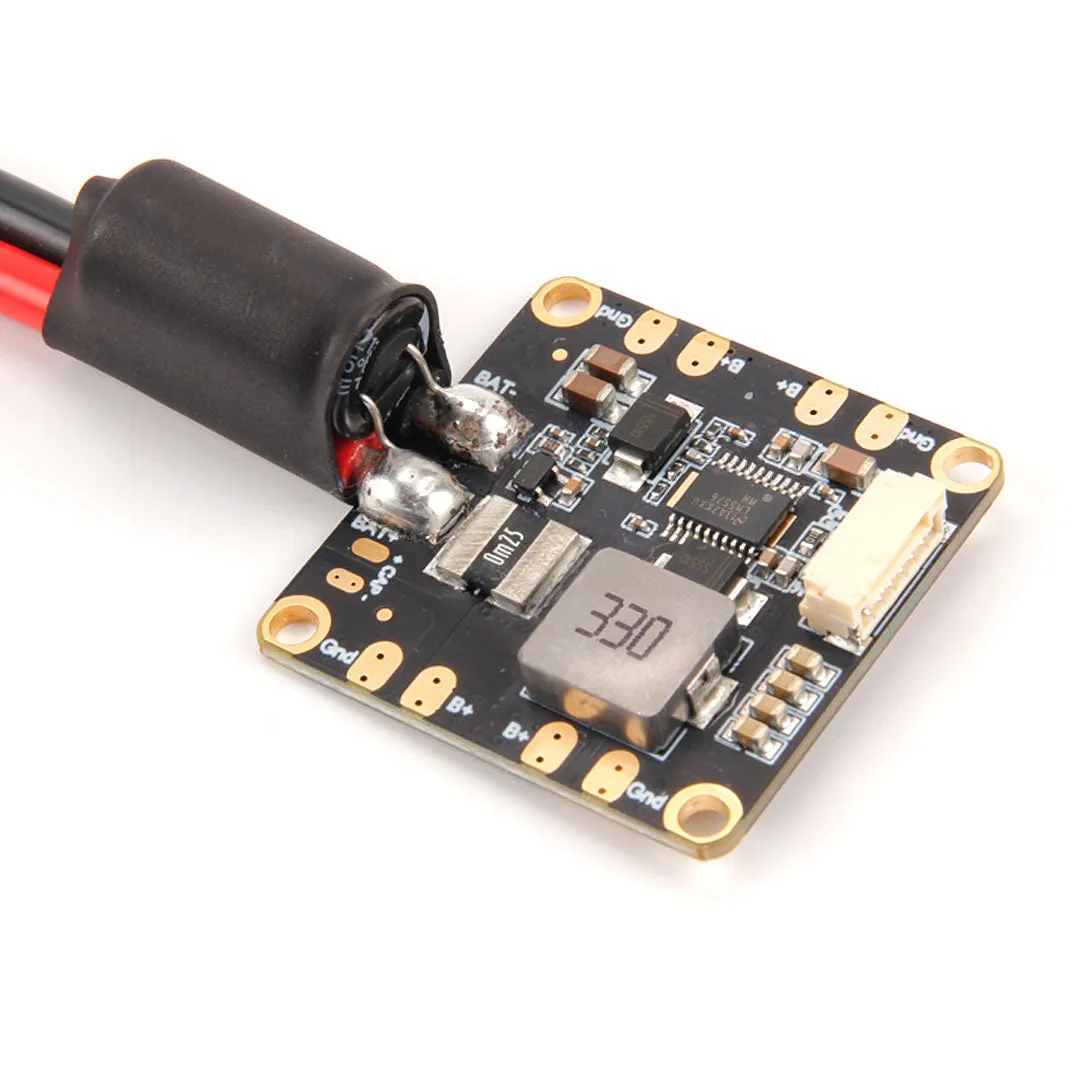

This PM06 Power Module supplies clean 5.2V to flight controller from the battery and provides current consumption and battery voltage measurements via analog signal through a 6 Pin JST-GH cable, along with integrated power distribution for 4 ESCs. It comes with pre-soldered wires, capacitor, and XT60 connector.

Specifications：

• Input voltage (10S version): 2S-10S
• Input voltage (14S version): 2S-14S
• PCB Cont. Current Rating: 70A
• PCB Burst Current Rating: 120A (<60 Sec)
• Output: DC 5.2V & 3A Max
• Ouput Max Power : 18W
• Voltage Divider: 18.182
• Amperes per Volt: 36.364

Please Note:

• The XT60 Plug and 12AWG wire that are pre-soldered on the board is rating for 30A continuous current and 60A burst current (< 60 Seconds). If a higher current is being used, the plug type and wire size should be changed accordingly. You can refer tofor reference.
• This PM02 Power Module uses analog data output and is not compatible to the Pixhawk 5X & 6X (Requires a digital PM like PM02D).

Mechanical Specification:

• Dimensions: 35x35x5mm
• Mounting hole: 30.5mm*30.5mm
• Weight: 24g

Pin Map:

Setup guide for PX4 & Ardupilot can be found in the

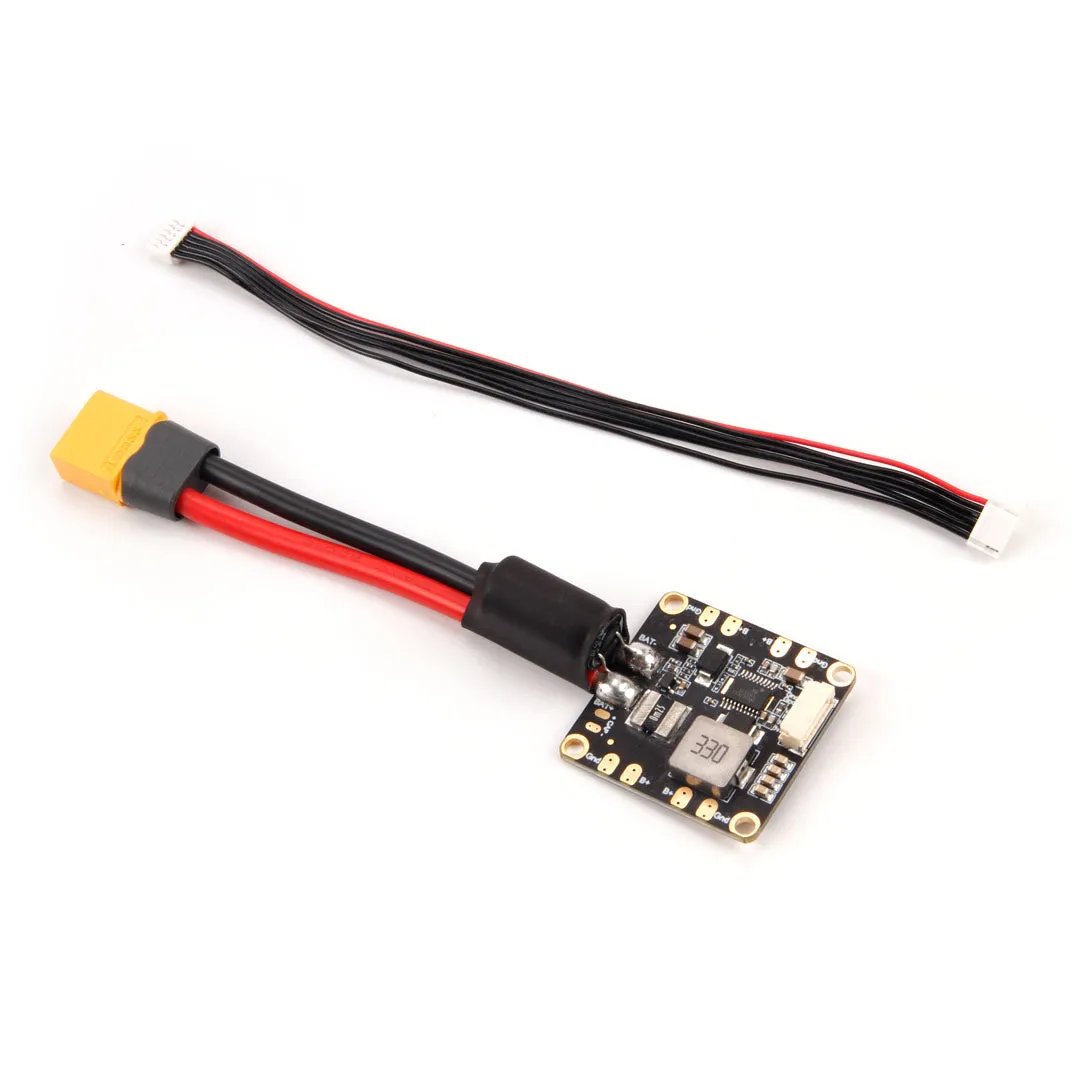

Package Includes

• 1x  PM06 Power Module
  1x  JST GHR 6pin 1.25mm pitch cable
