Product Details
＋
NOTE:- We might take 4 to 8 days to ship this product.

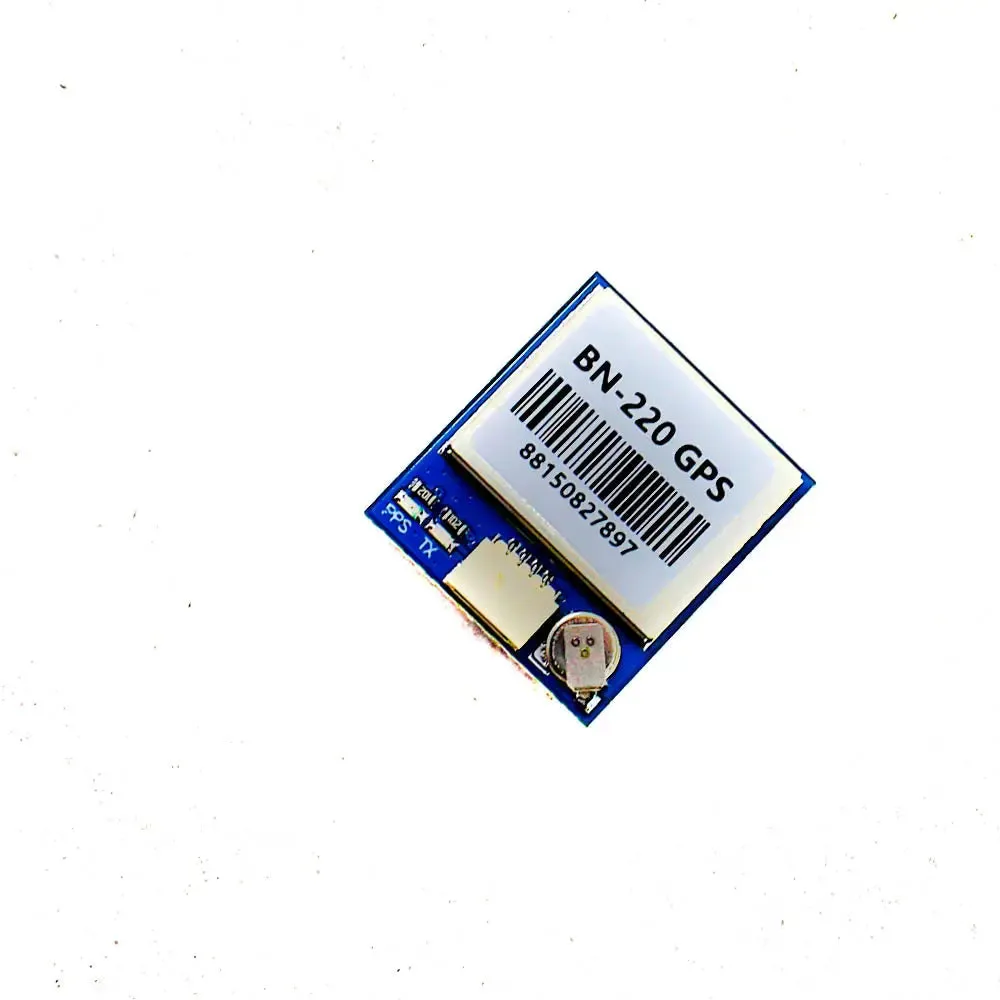

Readytosky GPS BN-220 Antenna Module TTL Level RC Drone. This BN-220 GPS Module can show your speed. When you use it for Raspberry Pi, there is no driver needed. The data output when the TX LED flashing in blue; PPS LED not bright when GPS not fixed, flashing in red when fixed
Features:
Small in size
Easy to use
Low power consumptions
high Sensitivity, Accuracy
Package Includes:
1× BN-220 GPS Module
2× 15cm Cable
Specification:
| Operation Voltage | 3.0V – 5.5V ( Typical 5V) |
| Channels | 72 Searching Channel |
| Sensitivity | Tracking: -167dBm |
| Reacquisition: -160dBm | |
| Cold start: -148dBm | |
| Hot start: -156dBm | |
| Accuracy | Position Horizontal: 2.0 m CEP 2D RMS SBAS Enable (Typical Open Sky) |
| Rate: 0.1m/sec 95% (SA off) | |
| Timing: 1us synchronized to GPS time | |
| Data and Update Rate | Support Rate : 4800bps to 921600bps,Default 9600bps |
| Data Level: TTL or RS-232, Default TTL level | |
| Data Protocol : NMEA-0183 or UBX, Default NMEA-0183 | |
| Single GNSS : 1Hz-18Hz | |
| Concurrent GNSS : 1Hz-10Hz,Default 1H | |
| Power consumption | VCC : DC Voltage 3.0V-5.5V,Typical: 5.0V |
| Current: Capture 50mA/5.0V | |
| Dimension | 22mm x 20mm x 6mm |
| Operating temp | -40 °C ~ 85°C |
| Storage Temp | -40°C ~ 105°C |
| Shipping Weight | 0.009 kg |
| Shipping Dimensions | 9 × 6 × 1 cm |
