Product Details ＋

RF Explorer Wideband License -

7500 MHz - Range for 6G COMBO & WB
6100 MHz - Range for 4G COMBO
3000 MHz - Span range

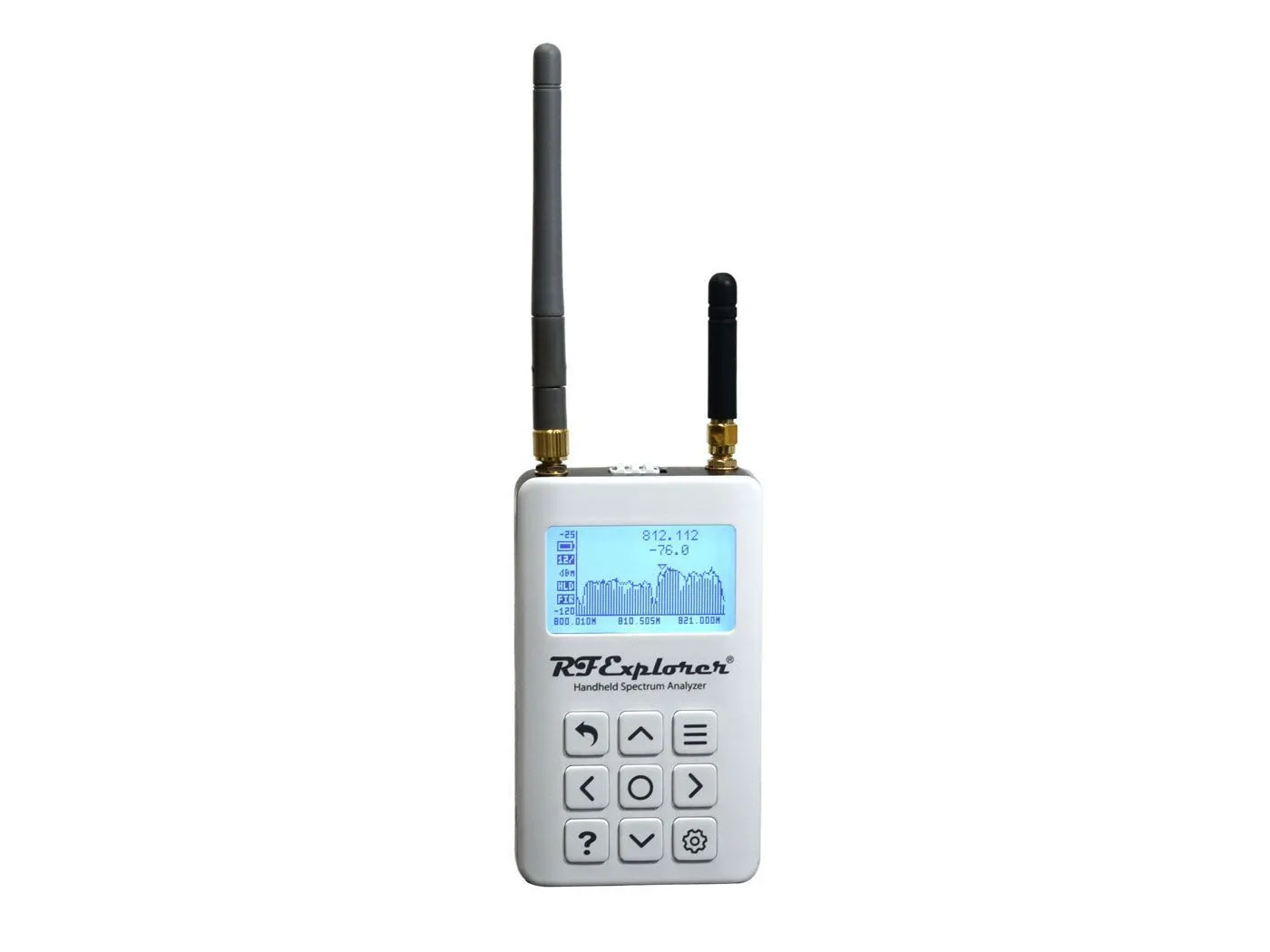

The RF Explorer Spectrum Analyzer PLUS models can optionally extend frequency range for the expansion module, which is the RF SMA connector on the right-side. The left-side RF connector is not affected by wideband license options. Each licenses is permanent, locked to the specific device where it is enabled. These licenses require a Windows, Linux or MacOS computer with internet connection for activation.

Please check below table for more details on supported models and ranges, select the right model for you.

RF Explorer 6G COMBO PLUS	Standard	RFELIC03	RFELIC03 RFELIC05
Expansion Frequency Range	240MHZ-6100MHz	15MHZ-6100MHz	15MHZ-7500MHz
Expansion Frequency Span	up to 960MHz	up to 3000MHz
Mainboard Frequency Range	50KHz-960MHz
Mainboard Frequency Span	up to 960MHz

RF Explorer 6G WB PLUS	Standard	RFELIC03	RFELIC03 RFELIC05
Expansion Frequency Range	15MHZ-6100MHz	15MHZ-6100MHz	15MHZ-7500MHz
Expansion Frequency Span	up to 960MHz	up to 3000MHz
Mainboard Frequency Range	N/A
Mainboard Frequency Span	N/A

RF Explorer 4G COMBO PLUS	Standard	RFELIC03	RFELIC03 RFELIC05
Expansion Frequency Range	240MHZ-4000MHz	15MHZ-5140MHz	15MHZ-6100MHz
Expansion Frequency Span	up to 960MHz	up to 3000MHz
Mainboard Frequency Range	50KHz-960MHz
Mainboard Frequency Span	up to 960MHz
