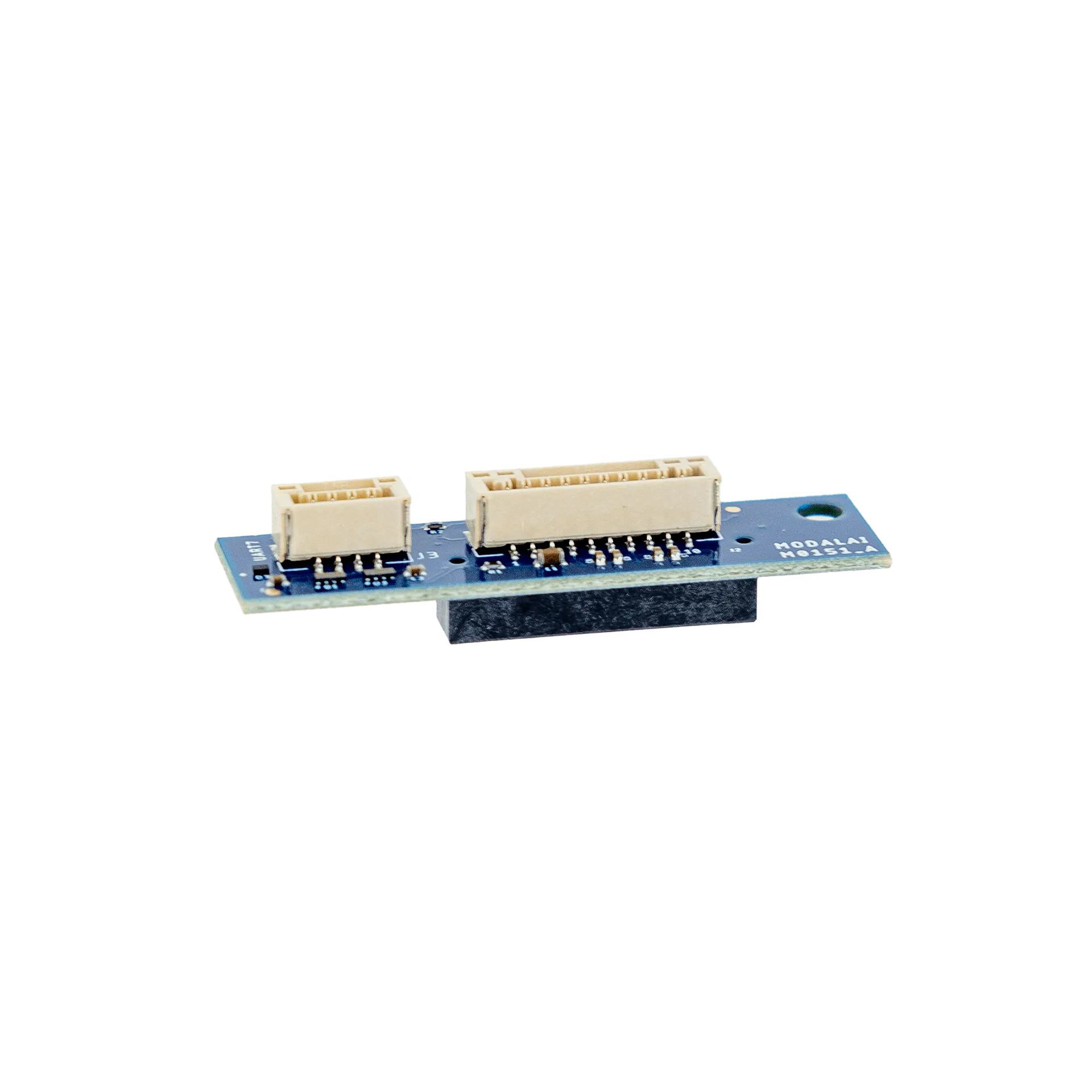

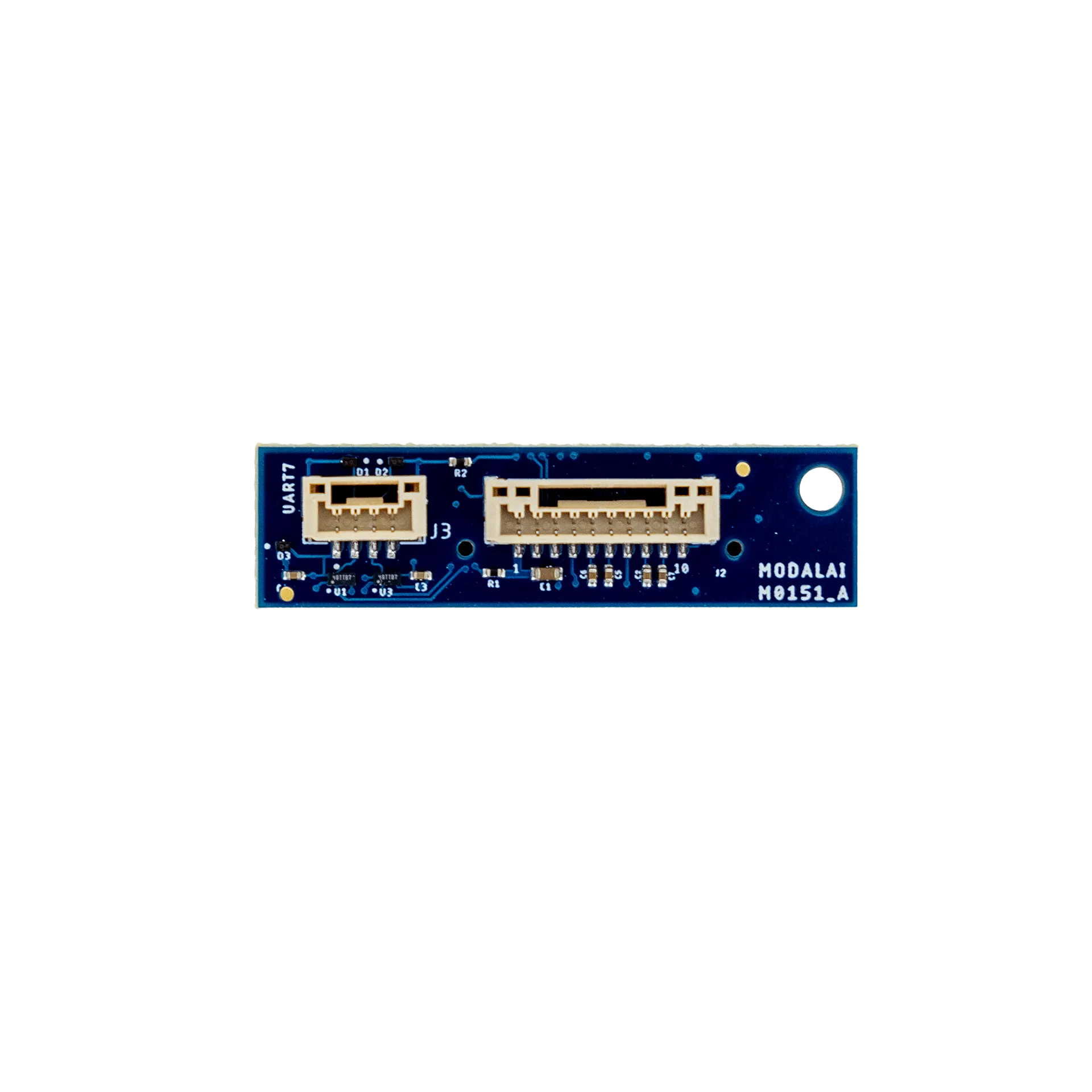

USB3.0 / UART Expansion Adapter - Connect USB3.0 devices and an external flight controller via UART

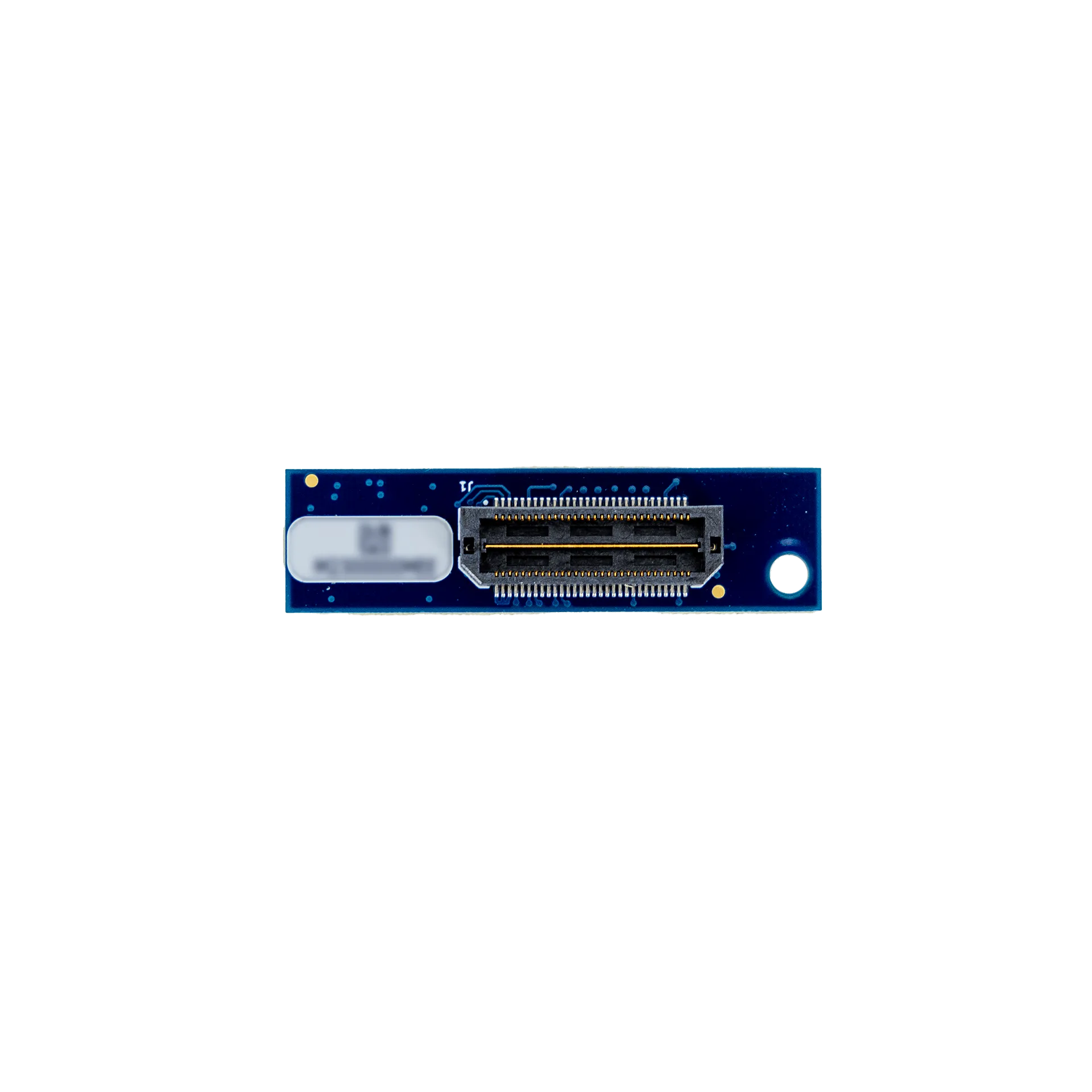

Our USB3.0 / UART Expansion Adapter installs directly onto a VOXL 2 via the legacy board to board connector (J3). Use this board to integrate USB 3 peripheral devices as well as an additional UART for . This product cannot be used in combination with other daughter boards or modems which are installed onto the legacy or high speed board to board connectors.

Ready to Use Development Tools

Product Specifications

• (1) USB3.0 connector
• (1) UART connector
• Micro form factor

Software Specifications

• Compatible with

Technical Details

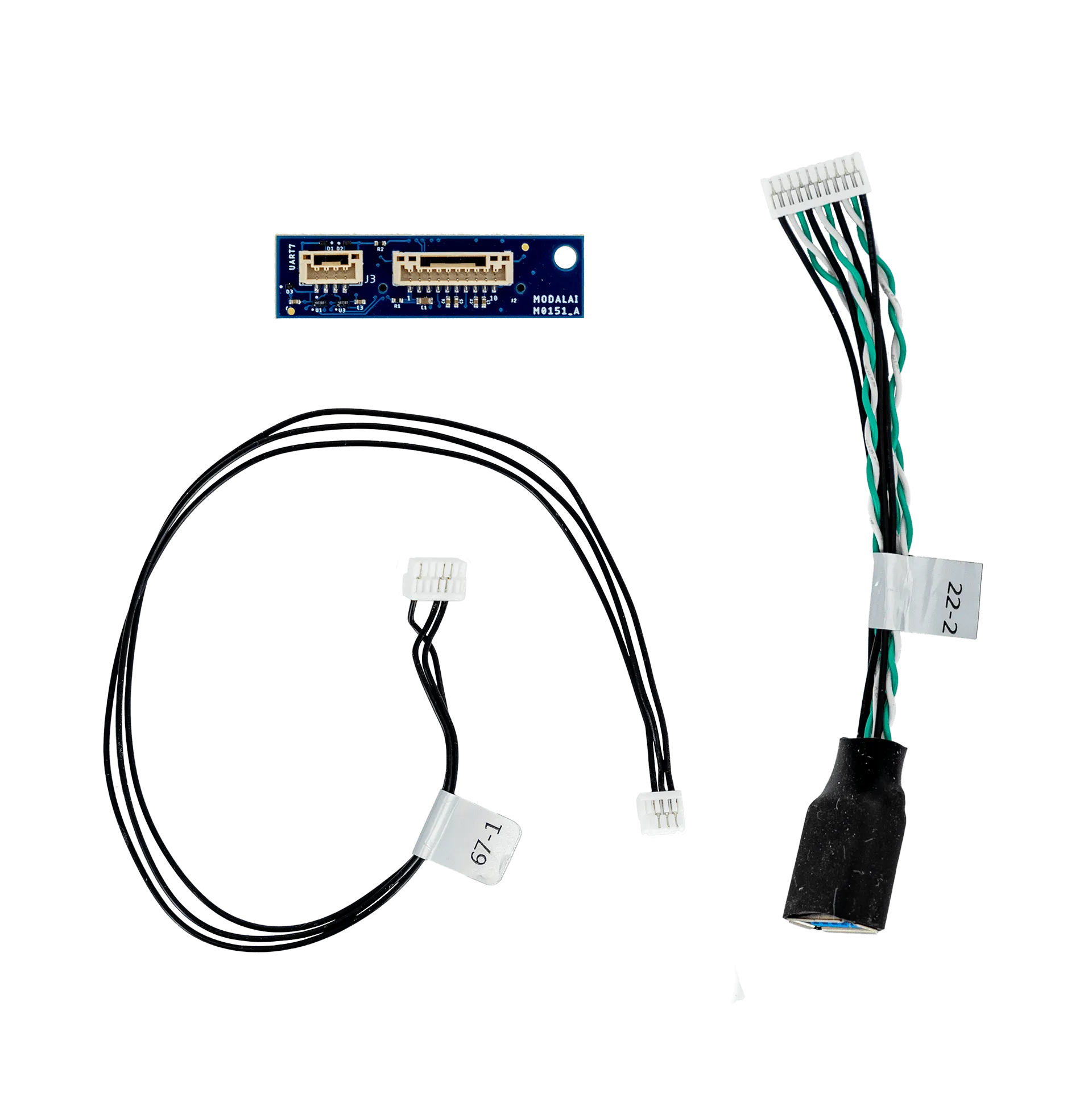

What's Included

Board Only

• (1) MCCA-M0151-1: USB 3 / UART Expansion Adapter

Dev Kit

• (1) MCCA-M0151-1: USB 3 / UART Expansion Adapter
• (1) MCBL-00011-1:  VOXL Power Module Y Cable for Flight Controller / VOXL or VOXL 2
• (1) MCBL-00022-1:  Type A USB 3, Female to 10 pos. JST GH male cable
• (1) MCBL-00059-1: UART Cable, Male 4 pos. JST GH to 4 pos. JST GH

Part Numbers

Compatible Products

Requirements to Get Started

• Intended for developers and technical users, please take caution and read thoroughly before purchasing
• Linux OS (Limited support for Windows and other OS)
• ADB must be installed on host computer for interaction with device. See for further information
• Users should be familiar with embedded development and Ubuntu to be comfortable on this platform
